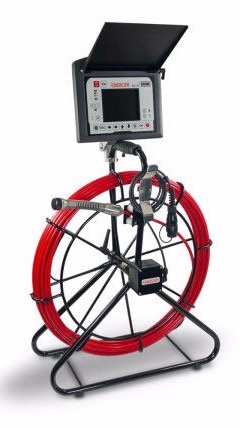

MSE-100 WITH SHP-9M
Versitile camera system ideal for rehabilitation, pipe cleaning, civil engineering…
CONTROL UNIT
High-resolution, bright 5.6 inch TFT display
Integrated MPEG-4 Video Recorder (avi) with snapshot function (bmp)
Digital meter counter with displaying in the video image
Li-Ion battery with a battery charger and charge indicator
REEL
usable from DN 50 to DN 400
suitable for bends as of 87° / DN 90
40 meter high-flexible pushcable (9 mm Ø)
Stable mount with quick-change system for the control unit.
RIK-45 Camera
AXIAL-COLOR-TV-CAMERA
usable from DN 70 to DN 400
suitable for bends as of 87° / DN 100

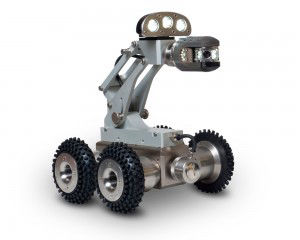

STEERABLE CRAWLER FWL-100FWL
A extremely solid and efficacy steerable crawler. Through its modular architecture, this crawler can be set up for various tasks.
usable from DN 100 to DN 600
suitable for bends as of 45° / DN 200
material: Brass / stainless steel
engine: 2 x BLDC-engine at 30 Watt
impetus: 6 powered wheels
steerable
camera elevator: mechanic (optional)
pressure-proof till 1 bar
internal pressure surveillance
tilt measurement long axis
tilt measurement lateral axis
power supply via control unit
dimensions (L x W x H): 240 x 87 x 78 mm / 9.5 x 3.4 x 3.1 inches
weight: 6,6 kg / 14.55 lbs
.

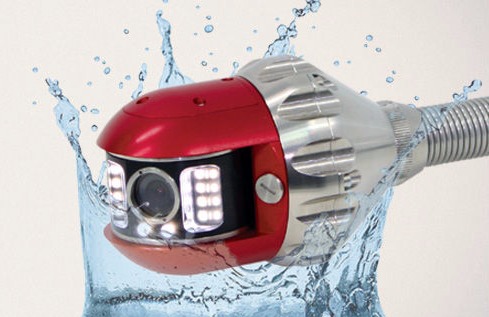

RZK-115 Camera
PAN AND TILT-ZOOM-TV-CAMERA
useable from DN 150 to DN 2000
TECHNICAL DATA
pluggable camera head made out of aluminium-stainless steel combination
(115 mm / 4.5 inches diameter, 160 mm / 6.3 inches length)
weight: approx. 2.2 kg / 4.8 lbs
waterproof to 5 bar
30 dimmable, ultrabright cold light LEDs
image sensor: 1/3" Color-CMOS
high-resolution color camera module (700 lines)
wide angle lens: 4° - 68°
10-times optical / 32-times digital zoom
focus: manual / automatic (3 - ∞ cm / 1.2 - ∞ inches)
swivel range: +/- 125°
continuous rotation
available as PAL and NTSC version
FEATURES
parallel laser for measurement functions
automatic horizon compensation
automatic 0-position
automatic 90° left / right pan function
automatic 360° inspection function
internal pressure-supervision
electronic adjustable focus
monitor insertions: rotation- and angle of slew,
internal pressure in bar with alarm function in the case of pressure drop.

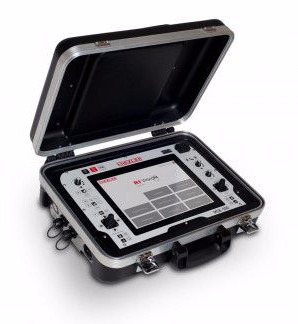

MSE-500 Controller
Compact. Mobile. Powerful.
Our professional control case MSE-500 –
Your central control and documentation unit
for all our cameras and crawlers.
The high resolution and daylight suitable 12.4" TFT display provides brillant picture quality and together with the ergonomically located controls allows a pleasant work
Via the existing USB ports devices such as keyboard or mouse can be used with the control case
Videos and pictures are saved on the internal memory and can be easily exported to an USB device.

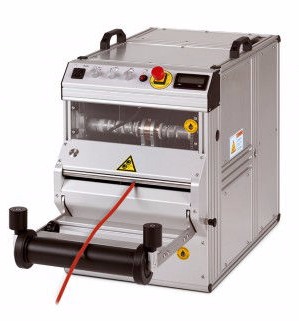

KTA-250
MOTORIZED CABLE DRUM
automatic cable position
integrated electronic control unit
150 - 250 meter / (492 - 820 feet) kevlar-reinforced, extra persistent, abrasion and acid resistant camera cable
crawler synchronization or manual mode
progressive adjustable tractive force
meter counter with incremental position encoder and output shaft
